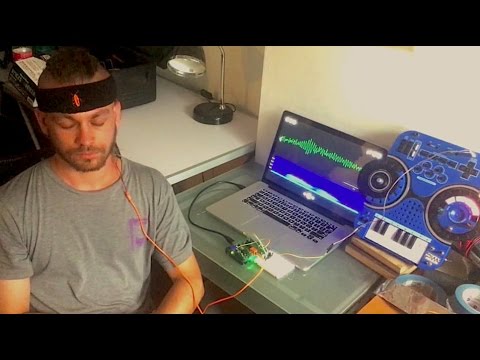

Pablo Guerra has produced a super fun mashup of a brain based EEG (Backyard Brains) and circuit bent musical feedback (DjckO).
![](https://blog.adafruit.com/wp-content/uploads/2017/04/brainding-1.png)
When Pablo Closes his eyes, alpha power increases, which causes the digital potentiometer to drop from95 kilohms to 70 kilohms. This then modulates a sound generation circuit in Pablo’s Musical Instrument
If you would like to build this, you must
- Remove LEDs 3,4, and 6 from the Heart and Brain SpikerShield (two yellow LEDs, and last red LED). This is because we are using those pins now to talk to the Digital Potentiometer.
- Upload this new code to your Arduino that allows the SpikeRecorder software to talk to the Digital Potential
- Run our new SpikeRecorder Software Prototype
![](https://blog.adafruit.com/wp-content/uploads/2017/04/brainding-2.jpg)
|
|
|
| |
